Santint dispensers

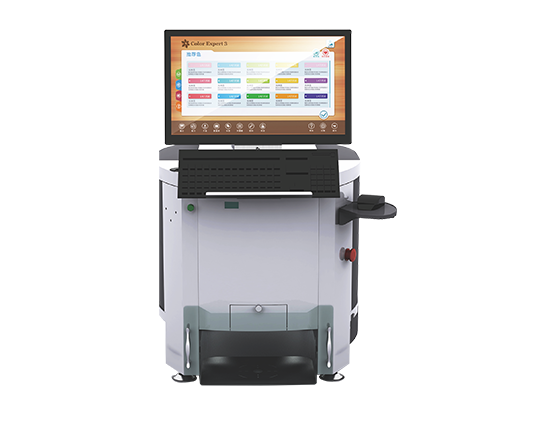

A1
1/3000Y(0.01ml) Interational Invention Patent Hummingbird Technonlgy ensures stable accuracy, 100% recirculation nozzle, purge free and dry free and dry free; Piston pump, calibration free, Real time feedback from high accuracy scale, Small footprint, easy movement; Desktop, space saving; The smallest automatic paint dispenser.
Flow Rate 600ml/min Efficiency 180ml/min Minimum Shot 1/3000Y(0.01ml) Pump Capacity 50ml Stirring Speed 20rpm Canister Volume 12*1.35L+4*2.3L（Standard） 16*1.35L（Optional） Tinters Up to 16 Can Size (DxH) 320mm*250mm(MAX) 80mm*60mm(MIN)) Machine Size (W x D x H) 670*800*800 Package Size (W x D x H) 720*960*755 Net Weight 80Kg Gross Weight 110Kgm Power ≤100W Power Supply 220V/110V 50Hz/60Hz
A2
1/3000Y(0.01ml) Interational Invention Patent Hummingbird Technonlgy ensures stable accuracy, 100% recirculation nozzle, purge free and dry free and dry free; Piston pump, calibration free, Real time feedback from high accuracy scale, Small footprint, easy movement; Desktop, space saving; The smallest automatic paint dispenser
Flow Rate 600ml/min Efficiency 200ml/min Minimum Shot 1/2000Y(0.015ml) Pump Capacity 60ml Stirring Speed 20rpm Canister Size 1.8L/2.3L POM 2.3L/3.8L Stainless Steel (Optional) NO. of Canisters Up to 16 Max Can Size ( D X H ) 320mmX600mm Machine Dimension ( W X D X H ) 707X848X1300mm Packing Dimension ( W X D X H ) 830X990X1500mm Loading Capacity 14 Pieces/20"Container Net Weight 130Kg Gross Weight 155Kg Power ≤100W Power Supply 220V/110V 50Hz/60Hz

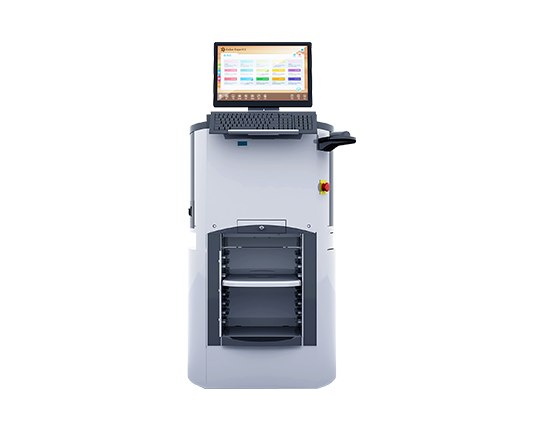

A3
1/3000Y(0.01ml) Interational Invention Patent Hummingbird Technonlgy ensures stable accuracy, 100% recirculation nozzle, purge free and dry free and dry free; Piston pump, calibration free, Real time feedback from high accuracy scale, Small footprint, easy movement; Desktop, space saving; The smallest automatic paint dispenser.
Efficiency 500ml/min Minimum Shot 1/2000Y (0.015ml) Pump Capacity 100ml Stirring Speed 20-25rpm Canister Size 2.3L NO. of Canisters Up to 16 Can Size(DXH) 320X420mm(Max) Machine Dimension ( W X D X H ) 720X895X1220mm Packing Dimension ( W X D X H ) 970X760X760mm Net Weight 125kg Gross Weight 150kg Power ≤100W Power Supply 220V/110V 50Hz/60Hz
